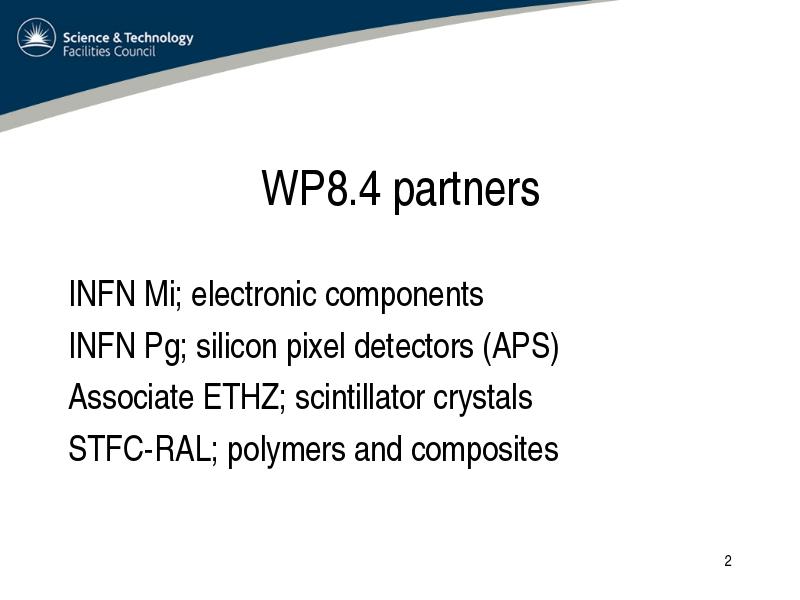

INFN Mi; electronic components

  • INFN Mi; electronic components

  • INFN Pg; silicon pixel detectors (APS)

  • Associate ETHZ; scintillator crystals

  • STFC-RAL; polymers and composites

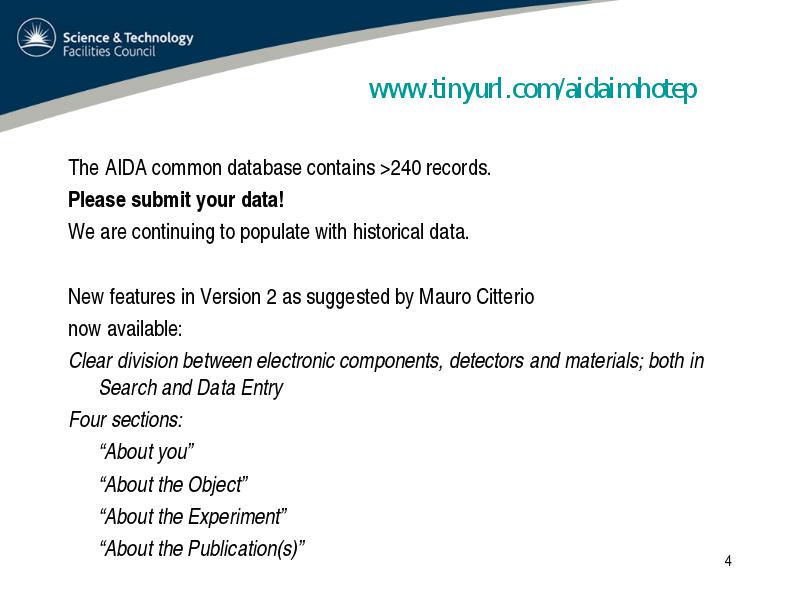

The AIDA common database contains >240 records.

  • The AIDA common database contains >240 records.

  • Please submit your data!

  • We are continuing to populate with historical data.

  • New features in Version 2 as suggested by Mauro Citterio

  • now available:

  • Clear division between electronic components, detectors and materials; both in Search and Data Entry

  • Four sections:

  • “About you”

  • “About the Object”

  • “About the Experiment”

  • “About the Publication(s)”

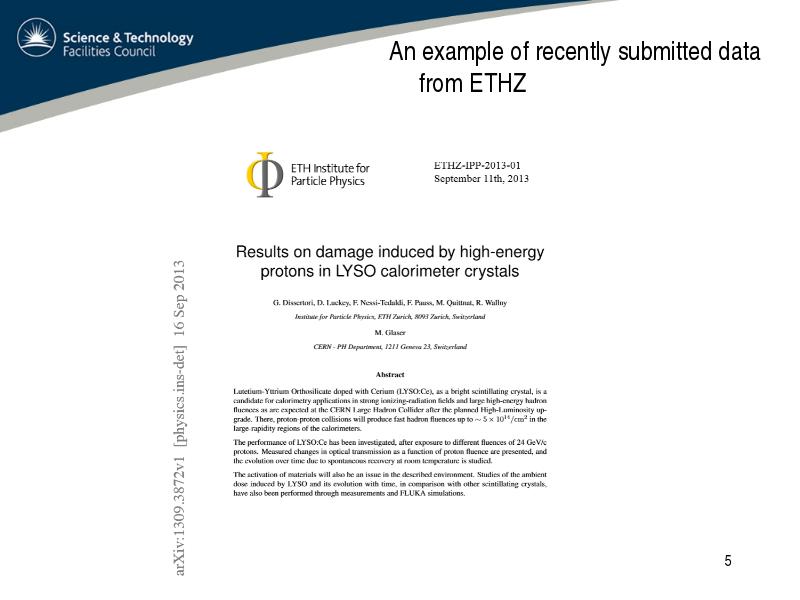

An example of recently submitted data from ETHZ

  • An example of recently submitted data from ETHZ

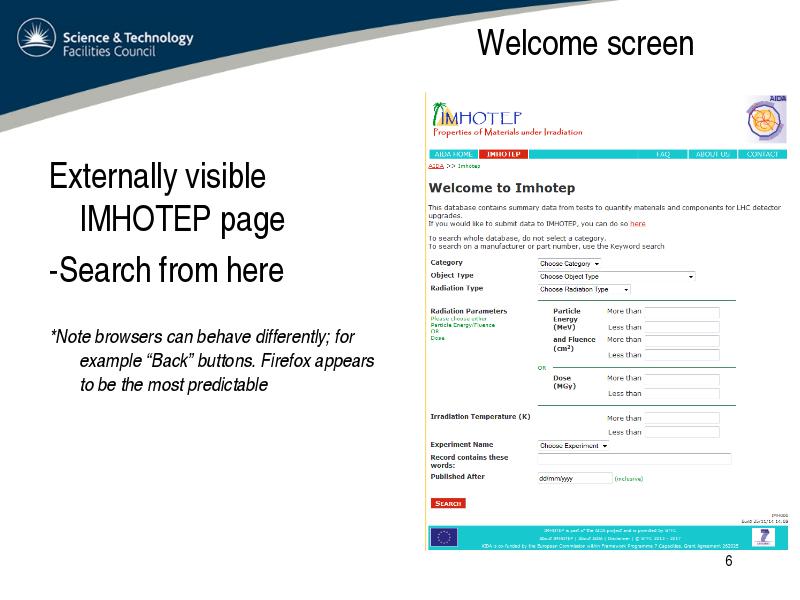

Externally visible IMHOTEP page

  • Externally visible IMHOTEP page

  • -Search from here

  • *Note browsers can behave differently; for example “Back” buttons. Firefox appears to be the most predictable

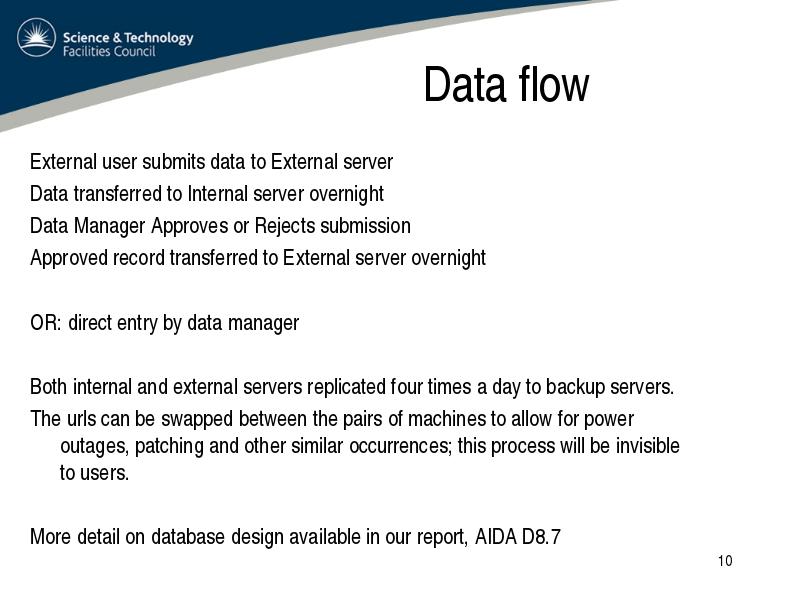

External user submits data to External server

  • External user submits data to External server

  • Data transferred to Internal server overnight

  • Data Manager Approves or Rejects submission

  • Approved record transferred to External server overnight

  • OR: direct entry by data manager

  • Both internal and external servers replicated four times a day to backup servers.

  • The urls can be swapped between the pairs of machines to allow for power outages, patching and other similar occurrences; this process will be invisible to users.

  • More detail on database design available in our report, AIDA D8.7

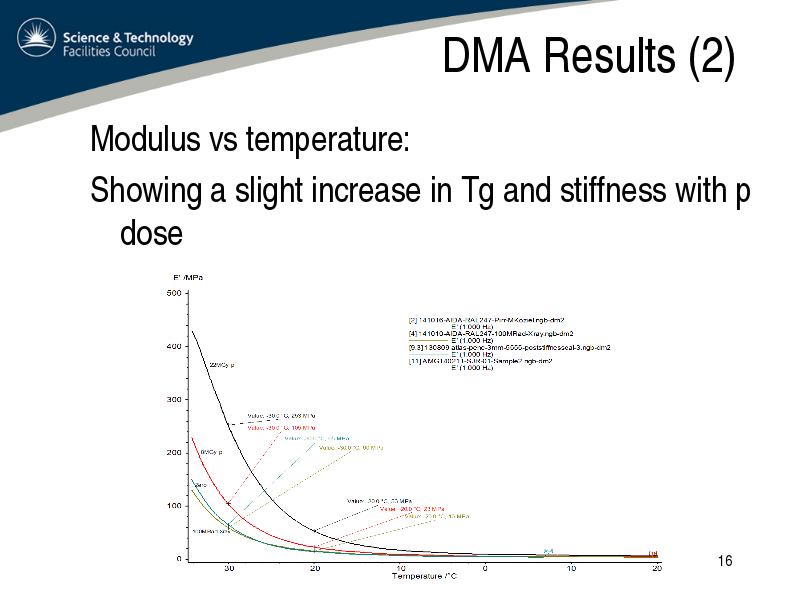

Modulus vs temperature:

  • Modulus vs temperature:

  • Showing a slight increase in Tg and stiffness with p dose



No significant features observed in the temperature range available

  • No significant features observed in the temperature range available

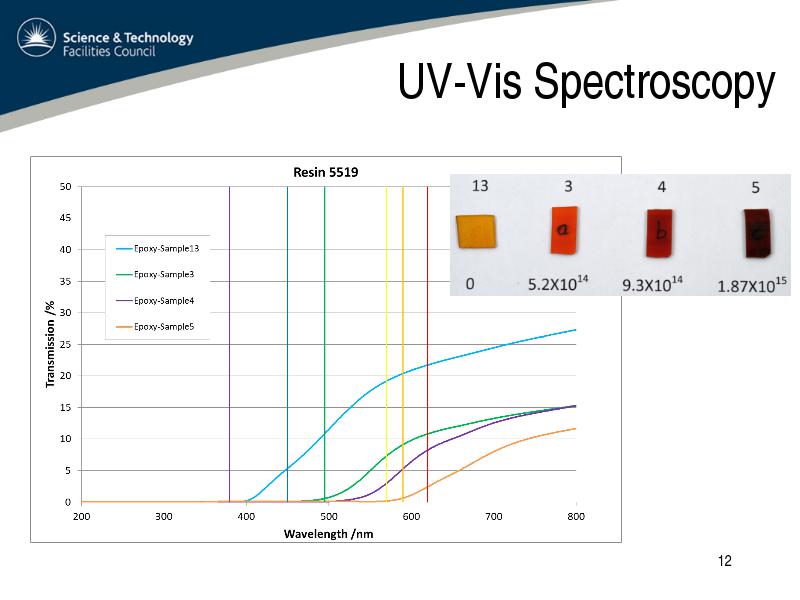

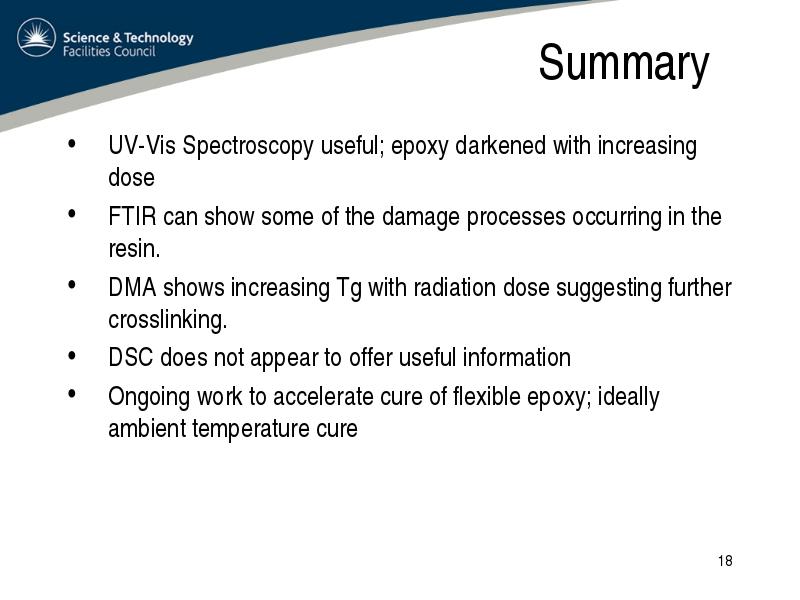

UV-Vis Spectroscopy useful; epoxy darkened with increasing dose

  • UV-Vis Spectroscopy useful; epoxy darkened with increasing dose

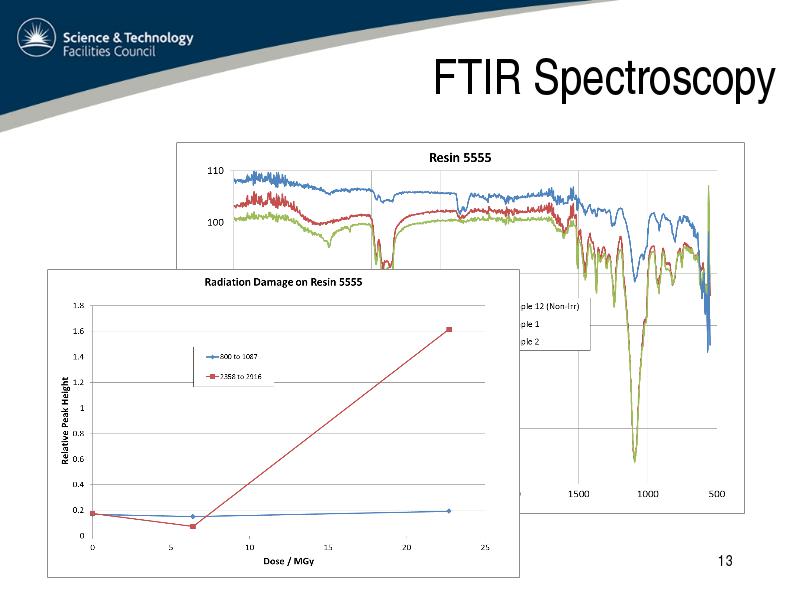

  • FTIR can show some of the damage processes occurring in the resin.

  • DMA shows increasing Tg with radiation dose suggesting further crosslinking.

  • DSC does not appear to offer useful information

  • Ongoing work to accelerate cure of flexible epoxy; ideally ambient temperature cure

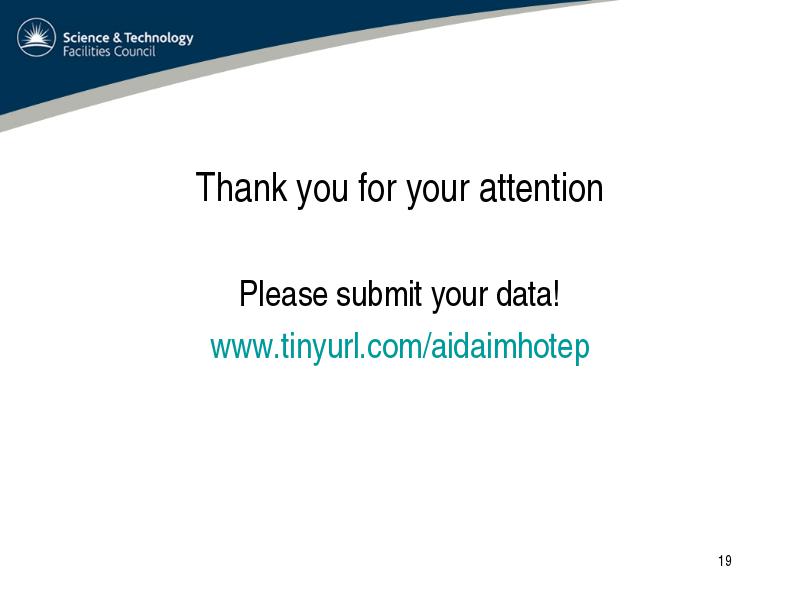

Please submit your data!

  • Please submit your data!

  • www.tinyurl.com/aidaimhotep
