Continuous wave technique: temperature changes in different parts of the tooth root
Nikolaev A.I., Nikolaeva E.A., Ginali A.N.

State budget educational institution of higher professional education «Smolensk State Medical Academy» Ministry of Health of the Russian Federation, Smolensk

Abstract. The study investigated the dynamics of temperature changes on the outer surface of the tooth root during root canal obturation using continuous wave technique. Established the safety of this procedure for periodontal tissues, which allows us to recommend it for use on an everyday dental practice.
Keywords: endodontic treatment, root canal obturation, gutta-percha, down-pack plugger, continuous wave technique.

Up-to-date endodontic treatment is a high-end technological procedure. Thanks to scientific studies, material and economic base perfection in last decade the paradigm of endodontic treatment has been changed: the main conditions of it are three-dimensional cleaning and obturation of a root canal system [9, 19]. To provide the successful solution of this task new methods of root canal filling are invented, existing ones are modified [7, 14]. Improvement of technology of warm vertical compaction (condensation) of gutta-perchaled to the invention of the special devices and protocols – thermopluggers and the “continuous wave” technique[3]. Modern thermoplugger– is an electronic device with a plugger-shaped working end. It can be used for both heating and compacting gutta-percha in root canal.

Commonly in clinical conditions, apical third of a root canal filled using continuous wave, and the middle and cervical thirds are filled with melted gutta-percha with the help of a special injector (extruder). This procedure was named “Hybrid technique”[16, 19]. Currently, varieties of devices from different manufactures for hybrid obturation are presented at the market (Fig. 1).



calamus dual всё для стоматологов олимп дентал

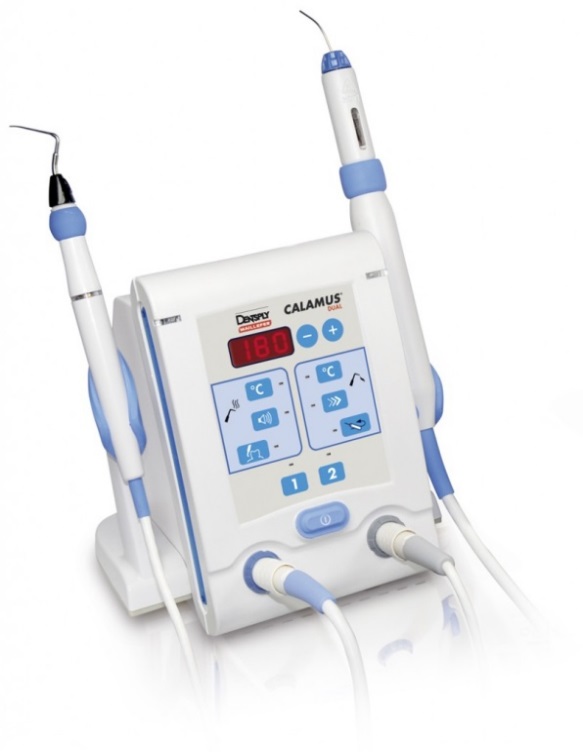

Fig. 1. Up-to-dated electronic devices for root canal obturation with warm gutta-percha using the continuous wave technique:

а –cordless electric devices for filling root canals with warm gutta-percha, equipped with functions of LED working area highlighting, plugger vibration and intraradicular irrigation solution activation GuttaEst-V (L)and extruder for filling root canal with warm gutta-percha GuttaFill (GeoSoft Dent);

b – electric device for hybrid technique of root canal obturation with methods of vertical condensation and injection of warm gutta-percha (Dentsply);

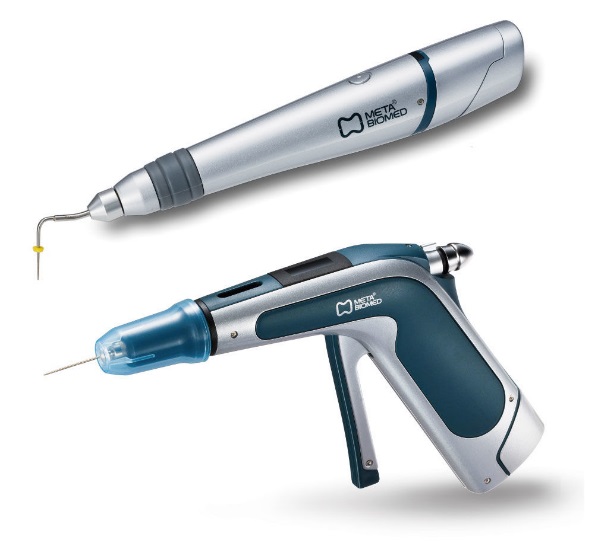

c – cordless system of three-dimensional root canal obturationwith warm gutta-percha E&QMaster (MetaBiomed);

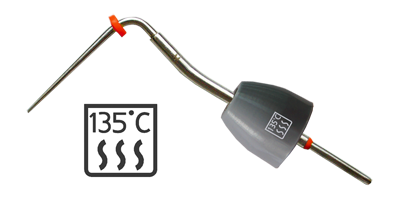

d – thermoplugger for heating, cutting and condensation of gutta-percha for GuttaEst-V (L) device; taper /size – .045 / ISO 50; color code- red.
At the same time, the level of application of new, high efficient root canal obturation technologies in practical dentistry cannot be considered as acceptable.

Our survey-questionnaire of 172 dental therapists who also provide endodontic treatment showed, that more, than one half of questioned (64,5%) use rotary NiTi instruments (36 dentists use only NiTi instruments, 75 – combine them with classical manual instruments).Only 21 dental therapists(12,2% of questioned specialists) use up-to-date methods of root canal obturation with warm gutta-percha. Over whelming majority (151 dentist or 88,8% questioned) fill root canals using cold lateral gutta-percha condensation, that has a number of disadvantages. The main of them are non-homogenous canal filling, thick layer of sealer between posts, and a high risk of vertical root fracture [6, 12, 16].

A range of factors can explain the state of affairs: from the lack of material and technical support of dental clinics to low level of theoretical and practical dentist’s training [5, 9, 13, 14]. A vagueness of a number of aspects of clinical usage of vertical gutta-percha compacting plays an important role. Many dentists consider this method dangerous for periodontal tissues due to high temperature (200-300°C), used during vertical gutta-percha compacting using continuous wave.

Despite the fact, that technique of three-dimensional root canal filling using thermoplastic gutta-percha exists more, than adecade [1, 18, 23], there is no well-defined opinion about safe limits of temperature increasing inside the tooth and on the external surfaceof the root. Only single studies about influence of high temperatures on tooth and periodontal tissues during filling process are found in literature. Many of them contradict each other [17, 20, 21]. A.Behnia and N.J.McDonald [2]ascertained, that at a temperature of 56°Calkaline phosphatase inactivation takes place in bone tissues, which leads to destruction of the last. Authors also showed that heating bone tissues at a temperature of 50°C during 1 minute or at a temperature of 47°C during 5 minutes leads to bone resorption and replacing of missing structures with adipose tissues.A.R.Eriksson and T.Albrektsson [4], E.M.Hardie [8]assert, that alteration in bone tissues can be noticed after increasing the temperature on the external surface of the root up to 44-47°C during 1 minute. At the same time, D.L.Husseyet etal. [10] and M.Lipski [11] proved, that short-term temperature increasing on an external surface of the root by 10 10°C is safe for surrounding tissues.

Because of above-stated, it seems relevant to investigate real temperatures, arising in tooth, periodontal tissues and in alveolar bone during filling root canal with warm gutta-percha, taking into account permissible limits of heating and constructional features of modern endodontic devices and instruments.

The aim of the study

The aim of the study is to look into the temperature changes, taking place in tooth and periodontal tissues during root canal filling using continuous wave technique with modern electronic thermoplugger.

Materials and Methods

The study involved 20 intact single – canal premolars, extracted due to orthodontic prescriptions. Tooth were picked out not later than 15 minutes after extraction, cleaned and placed into+4°C distilled water for not more, than 10 days.

After creating endoaccess, premolar root canals were proceed by a standard protocol. Canal was navigated using steel K-files #10;glide-path was created using rotary nickel-titanium instruments “PathFile” (Dentsply). On this stage tooth canals were shaped till ISO size 19. To shape the canals, rotary NiTi instruments «ProTaper» (Dentsply) until F2 file size (working end tip diameter – 25 ISO). Current and finishing irrigation was provided by 3% solution of sodium hypochlorite («Parcan», Septodont) using passive ultrasonic activation. As a completion, root canals were irrigated using 10ml of distilled water and dried with paper points.

The «GuttaEst-V (L)» (Geosoft Dent)device was used during laboratory investigation of temperature changes in tooth tissues during canal filling using continuous wave technique.

After tooth canal preparation, a thermoplugger was fitted. Working end size was selected to be wedged 5mm before apical foramen(fig. 2, а). F2 size gutta-percha post was fitted on a working length (fig. 2, b).

а b

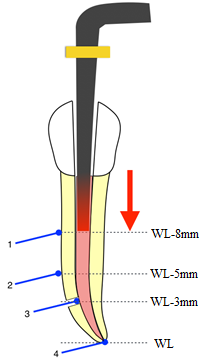

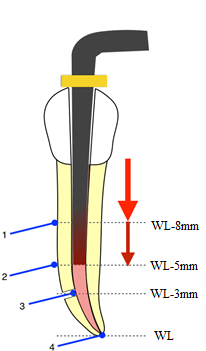

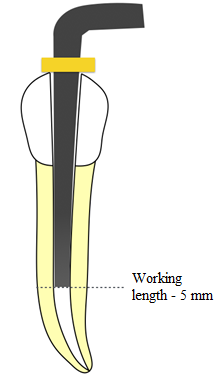

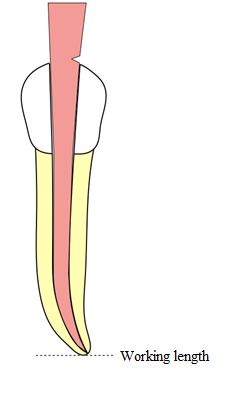

Fig. 2. Preparationofthelaboratory’s toothrootcanalforfilling(sketch):

a–plugger fitting (WL - 5 мм);

b–fitting gutta-percha post till WL.
K-type thermocouples (chromel/alumel) with a sensor size of 0.5mm were installed in predetermined points of the tooth. They were connected to the computer using UT323 (UNI-T) thermometer (Fig. 3). For the simplicity of text perception by dentists without engineering education, the authors consider rational to replace the term “K-type thermocouple” by the term “thermo sensor”.

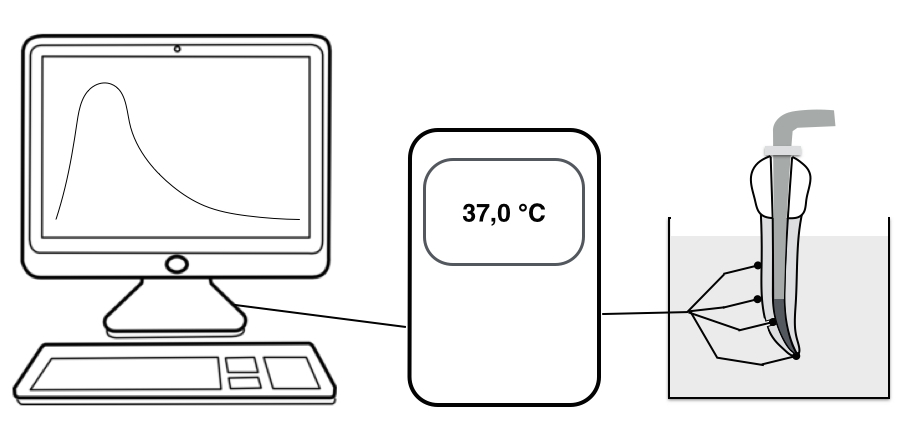

Fig. 3. Elementary diagram of the laboratory investigation.

Two thermosensors (№1, №2) were installed on an external surface of the root at a distance of 8 and 5 mm from tooth apex. For the third thermo sensor, a tiny canal was burred at a distance of 3mm from the apex to record temperature changes in gutta-percha post. Thermosensor #4 was installed in the area of tooth apical foramen (fig. 4).

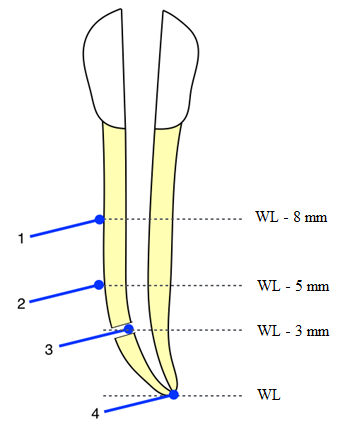

Fig. 4. Scheme of thermo sensors positions in under study tooth.

The fitted gutta-percha post with sealer «AHPlus» (Dentsply) was immersed into the root canal. The system with tooth and thermo sensor was placed into a thermostat with warm water (+37°C). After that canal was filled using continuous wave technique according to the generally accepted rules [11] using thermoplugger «GuttaEst-V (L)» (GeoSoft Dent). The temperature was set to 200°C. The tip of the thermoplugger was placed on the canal opening, then heating was activated and the instrument was forwarded through gutta-percha with one movement on a level 3mm shorter, than determined length (fig. 5, а). After that heating was switched off and, keeping apical pressure, instrument tip was forwarded down to determined point (fig. 5, b).Reaching determined point, apical pressure on a plugger was kept during 10 more seconds to compensate cooling gutta-percha shrinkage. (fig. 5, c). After that, plugger was removed with gutta-percha remains (fig. 5, d). Output data from thermo sensors were captured using special software.

а б

в г

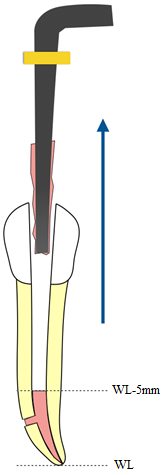

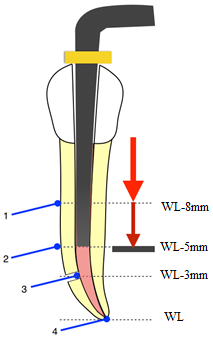

Рис. 5. Scheme of root canal filling using continuous wave technique during laboratory investigation:

а–inputting warm plugger into the root canal;

б–immersing plugger and compacting gutta-percha in the apical direction with the instrument heater off;

в–reaching preset work length of a plugger immersing with a constant apical pressure on an instrument;

г–excretion of the plugger with gutta-percha remains.
Clinical part of investigation took place on a basis of dental clinic «МАН» (city Bryansk). Efficiency, ergonomic, specifications and clinically important characteristics and method of application of «GuttaEst-V (L) » (Geosoft Dent)device were assessed.
Results and discussion

Temperature change dynamic in different tooth parts can be found on figure 6. Data, collected during laboratory investigation, shows us, that maximal temperature increase on the external surface of the root during filling process was found 8mm before apex and equaled +3,8±0,6°C. Thus gutta-percha was heated up to 109,2°C. Gutta-percha can be heated and compacted without chemical structure changes.

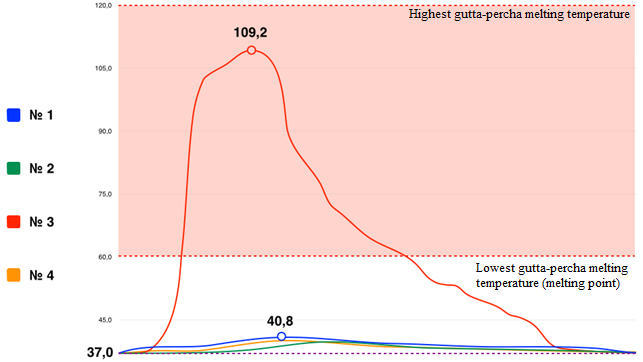

Fig. 6. Temperaturechangedynamicindifferenttooth root parts during filling using continuous wave technique in laboratory conditions.
It is interesting to note, that switching thermoplugger multiple times inside tooth canal does not lead to serious temperature increasing on the external surface of the root (fig. 7). We have found out, that tenfold thermopluggers witching on leads to stabilization of the temperature at the level of +41,3±0,4°C. After that, a long period of tooth tissues cooling down follows: after single switching on tooth cools down in 16±3 seconds, after tenfold–in 35±6 sec.

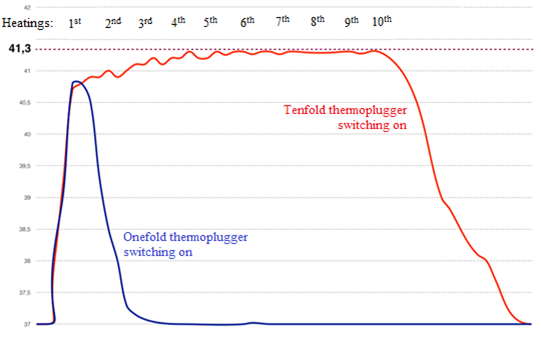

Рис. 7. Temperature change dynamic in different tooth root parts in laboratory conditions with one foldandtenfold thermopluggers witching on.

Accumulated data shows us, that temperature increasing on the external surface of the root during root canal filling using continuous wave technique with modern electronic thermopluggers with standard temperature mode isperfectlyacceptableandsafeforthesurroundingtissues.
Root canal filling technique involving thermoplugger (continuous wave technique) allows us to ensure fast (on average, 12-15 sec) obturation of 5mm of apical part of the root canal, solving the main endodontic problem of classical Schilders vertical compaction: decreasing procedure’s length and complicity [5, 11, 23]. In English publications, this stage is named Down-pack.

As soon, as apical part of root canal is filled, a method of filling the rest of the canal is to be chosen.

If it is planned to place fiber post, metal screw post or cast pin-stump construction, it is not required to fill the rest of the canal with gutta-percha.

If the canal requires complete filling, then two options exist. The first one– using thermoplugger, according to above-described technique. The only difference is the temperature mode: in this case, the temperature of +100°C is used. However, this option is laborious, gutta-percha posts may stick to the plugger at this temperature, therefore majority of dentists prefer to use injection of warm gutta-percha. Using this technique the middle and cervical part of the root canal are filled with warm gutta-percha using special injector (extruder)(fig. 8) with portions of 3-5 mm, compacting them using cold manual plugger. In English literature,this technique is called Back-Fill.

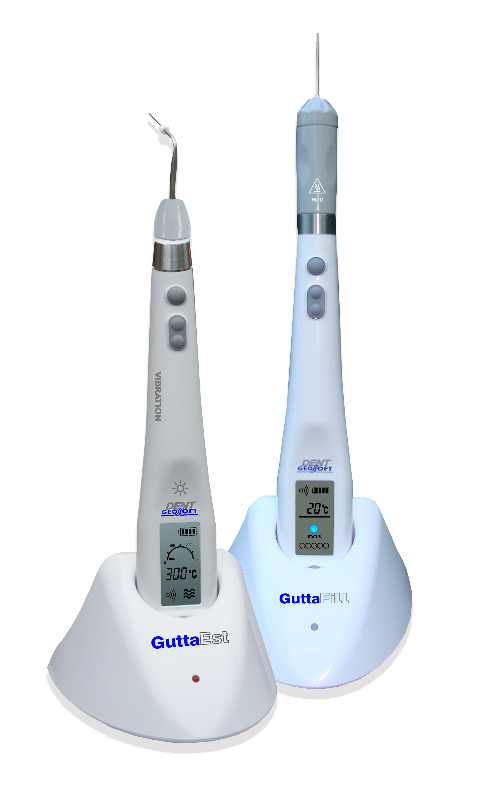

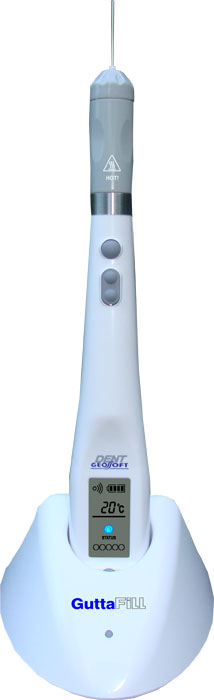

Fig. 8. Extruderforinjectionrootcanalfillingwithwarmgutta-percha«GuttaFill» (GeoSoft Dent).

According to the results of laboratory investigation, and our clinical experience(рис. 9, 10), filling root canals using continuous wave technique with modern endodontic devices is safe and effective. Apprehensions of possible thermal trauma of periodontal and bone tissues are considered groundless. A wide application of continuous wave root filling technique in practical dentistry is highly recommended.

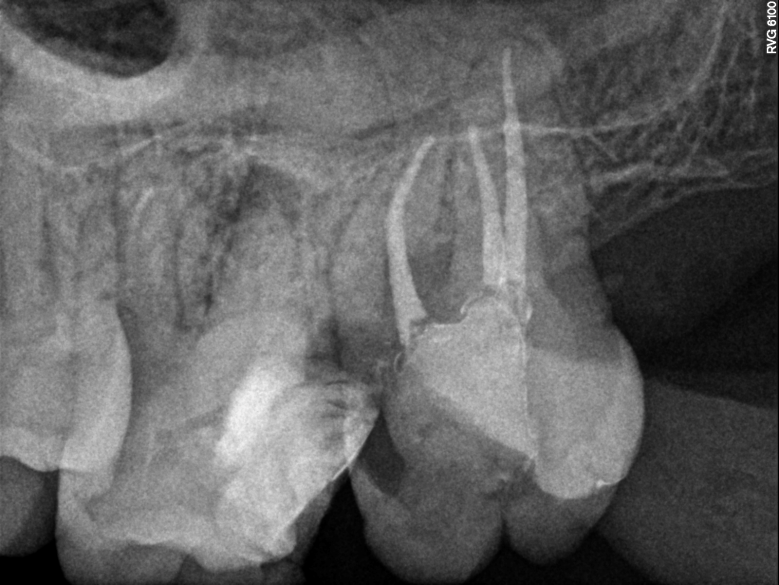

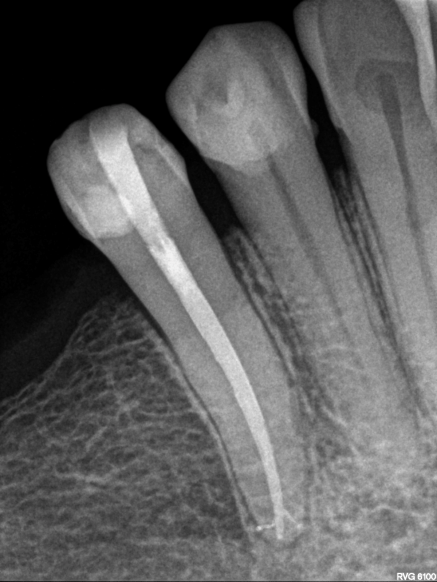

Fig. 9. Clinical cases of tooth root filling using continuous wave technique.

Fig. 10. Endodontic retreatment: tooth 2.5–anch or postremoved; canal filled using continuous wave technique on ½ of its length,empty space left for cast post & core construction. канал запломбирован методом непрерывной волны на 1/2 длины, оставлено место для литой штифтово-культевой вкладки.

The «GuttaEst-V (L)» (Geosoft Dent) device we used in laboratory investigation is easy to operate, ergonomic, has agreat price/quality rate and does not give upon the clinically important and exploit quality compared to foreign devices. Inouropinion, itisimportanttonotethe following advantages and additional options of this device:

  • cordless, ergonomic design for simplifying work in root canal;

  • additional option of vibration of the plugger, which provides better gutta-percha compacting;

  • the option of intracanal activation of the irrigating solution;

  • bright working area highlighting with a white LED (modification «L»);

  • accessible and fast service maintain.

Besides, we consider expedience to widely use «GuttaEst-V (L)» in teaching process on all stages of pre- and postgraduate education.


  1. Afanaseva, N.V. Aprobirovaniemetodikivertikalnoykondensatsiigoryacheyguttaperchidlyatrehmernoyobturatsiikornevyihkanalov / N.V. Afanaseva, K.A. Popova // XVI regionalnayakonferentsiyamolodyihissledovateleyVolgogradskoyoblasti: Tezisyidokladov. - Volgograd, 2011. - S. 5-6.

  2. Behnia, A. In vitro infrared thermographic assessment of root surface temperatures generated by theThermafil plus system / A. Behnia,N.J. McDonald // J Endod. - 2001. - Vol. 27, Issue 3. - P. 203-205.

  3. Buchanan, L.S. The continuous wave of obturation technique: «centered» condensation of warm gutta-percha in 12 seconds / L.S. Buchanan // Dent Today. - 1996. - Vol. 15, Issue 1. - P. 60-67.

  4. Eriksson, A.R. Temperature threshold levels for heat induced bone tissue injury: A vital-microscopy study in the rabbit / A.R. Eriksson, T. Albrektsson // J Prosthet Dent. - 1983. - Vol. 50. - P. 101-107.

  5. Galanova, T.A. Otdalennyierezultatyilecheniyahronicheskogoapikalnogoperiodontita / T.A. Galanova, T.E. Scherbakova // Endodontiya today. - 2011. - № 2. - S. 73-77.

  6. Graunaite, I. Pathogenesis of Apical Periodontitis: a Literature Review / I. Graunaite, G. Lodiene, V. Maciulskiene // J Oral Maxillofac Res. - 2011. - Vol. 2, Issue 4. - P. 1-16.

  7. Gutmann, Dzh. Buduschee v obturatsiikornevyihkanalov / Dzh. Gutmann // Endodontiya. - 2012. - №1-2. - S. 57-62.

  8. Hardie, E.M. Heat transmission to the outer surface of the tooth during the thermomechanical compaction technique of root canal obturation / E.M. Hardie //IntEndod J. - 1986. - Vol. 19. - P. 73-77.

  9. Hargreaves, K.M. Cohen’s Pathways of the Pulp / K.M. Hargreaves, S. Cohen, L.H. Berman. - 10th edition. - Mosby Elsevier, 2010. - 952 p.

  10. Hussey, D.L. Thermographic assessmentof heat generated on the root surface duringpost space preparation / D.L. Hussey, P.A. Biagioni, J.J. McCullagh, P.J. Lamey // IntEndod J. - 1997. - Vol. 30, Issue 3. - P. 187-190.

  11. Lipski, M.Root surface temperaturerises during root canal obturation,invitro,by the continuous wave ofcondensation technique using system Bheat source / M. Lipski / Oral Surg Oral Med Oral PatholOral RadiolEndod. - 2005. - Vol. 99. - P. 505-510.

  12. Natera, M. A comparison of two gutta-percha obturation techniques toreplicate canal irregularities in a split-tooth model / M. Natera, R. Pileggi,U. Nair // Oral Surgery, Oral Medicine, Oral Pathology, Oral Radiology and Endodontology. - 2011. - Vol. 112, Issue 5. - P. 29-34.

  13. Nikolaev, A.I. Nuzhna li sovremennomustomatologumyishyakovistaya pasta? / A.I. Nikolaev, O.Yu. Kuzminskaya, D.A. Nikolaev // Maestro stomatologii. - 2011 - #42. - S. 26-27.

  14. Nikolaev, A.I. Putipovyisheniyakachestvaendodonticheskogolecheniya / A.I. Nikolaev, L.M. Tsepov, A.G. Shargorodskiy// Klinicheskayastomatologiya. - 1999. – № 2. – S. 14-17.

  15. Nikolaeva, E.A. Rezultatyioprosa-anketirovaniyavracheystomatologovpovoprosamispolzovaniya v praktikesovremennyihmetodikendodonticheskogolecheniya / E.A. Nikolaeva // UchenyiezapiskiOrlovskogogosudarstvennogouniversiteta. - 2014. -№ 7(63). - S. 299-300.

  16. Ruddle, C.J.Filling root canal systems: the Calamus 3-D obturation technique / C.J. Ruddle // Dent Today. - 2010. - Vol. 29, Issue 4. - P. 78-81.

  17. Saunders, E.M. In vivo findings associated with heat generation during thermomechanical compaction of guttapercha. Part II. Histological response to temperature elevation on the external surface of the root / E.M. Sauders //IntEndod J. - 1990. - Vol. 23. - P. 268-274.

  18. Schilder, H.Filling root canals in three dimensions / H. Schilder // Dent Clin North Am. - 1967. - Vol. 11. - P. 723-744.

  19. Torabinejad,M. Endodontics: Principles and Practice / M. Torabinejad, R.E. Walton. - 5th edition. - Saunders, 2014. - 496 p.

  20. Velitchenko, I.A. Vliyanieteplovyihfaktorovnatkanizubapriendodonticheskomlechenii : dis. ... kand. med. nauk : 14.01.14 / Velitchenko Irina Anatolevna.- M., 2011.- 140 s.

  21. Vinnichenko, Yu.A. Vliyanieteplovyihfaktorovnatkanizubaiperiodontapriendodonticheskomlechenii (obzorliteraturyi) / Yu.A. Vinnichenko, A.V. Vinnichenko, I.A. Velitchenko // Klinicheskayastomatologiya. - 2010. - №2. - S. 26-30.

  22. Zhang, W. Effect of canal taper and plugger size on warm gutta-perchaobturation of lateral depressions / W. Zhang, H. Suguro, Y. Kobayash et al. // Journal of Oral Science - 2011. - Vol. 53, Issue. 2. - P. 219-224.

  23. Zoryan, A.A. Metodikiobturatsiikornevogokanala / A.A. Zoryan, A.M. Ovsepyan, V.N. Chilikin. //DentalMarket. - 2006. - №9 – S.16-21.
